Technical details
| Item | NED13-CV24 |
| Light emitting | 360degree |
| Material | 100% purity silicon, anti-UV, anti-salt |

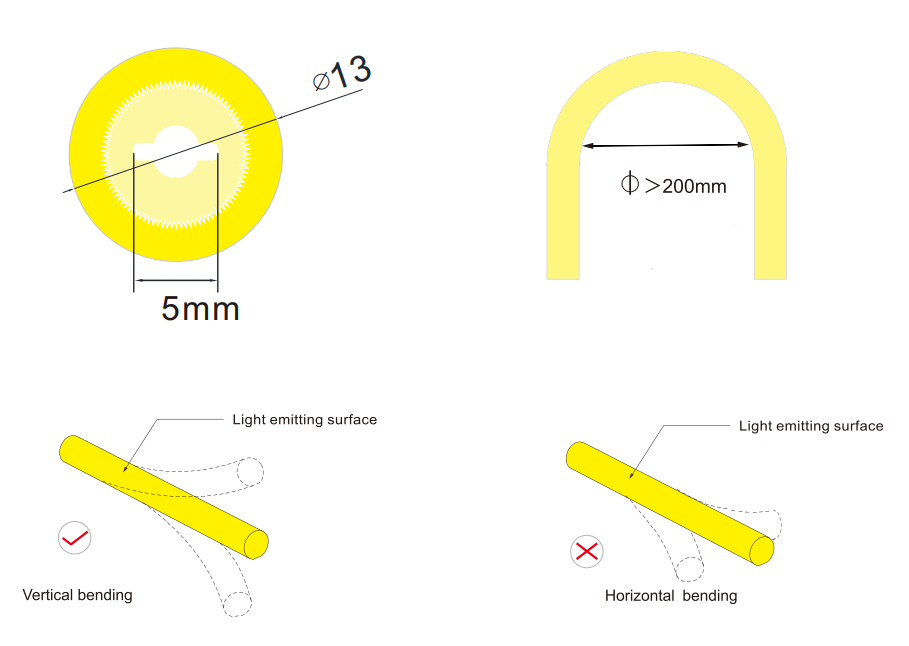

| Size | Dia 13mm / 0.51in |
| Color temperature/ Color | 2100K,2400K,2700K,3000K,3500K,4000K,5000K, 6000K Red/Blue/Green/Orange/Yellow |
| Mini Cut | 25mm |
| Cable entry | front |
| Max length ( One end feed) | 5meters |
| Power (per meter) | 8.6W |
| Lumen Output(per meter) | 59.8lm/w |
| Electrical | Temperature Range | |||||||
| Input Voltage(V): | DC24V | Installation: | -40°F to 134°F (-40°C to 55°C) | |||||
| Control gear type: | Contant voltage driver | Operating: | -25°F to 131°F (-25°C to 55°C) | |||||
| Ref: | Meanwell | Humidity: | 0-95% non condensing | |||||
| Emergency | / | |||||||
| Performance | Optics | |||||||
| Fire Proof: | V1 | Light controller: | PMW/Triac/0-10Vdim/Dali | |||||
| Tensile Force: | UGR: | >19 | ||||||
| Inpact test: | IK04 | CRI: | CRI 80 / CRI 90 | |||||
| Certifacte: | CE/ RoHs | SDCM: | 3Step One BIN only | |||||

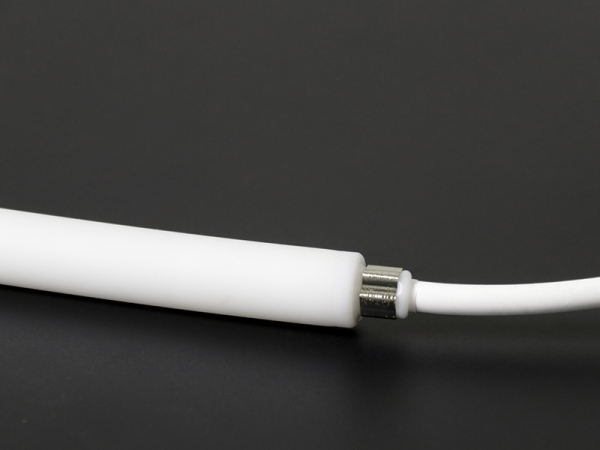

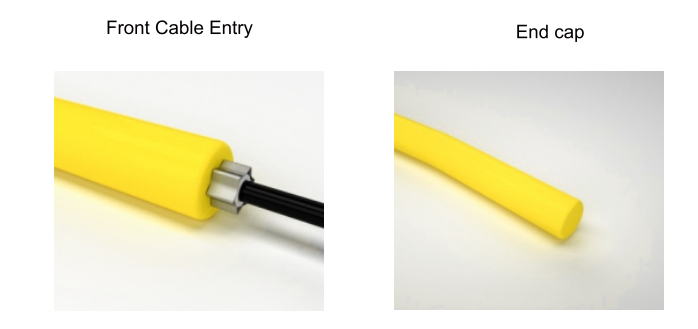

Outgoing cable method

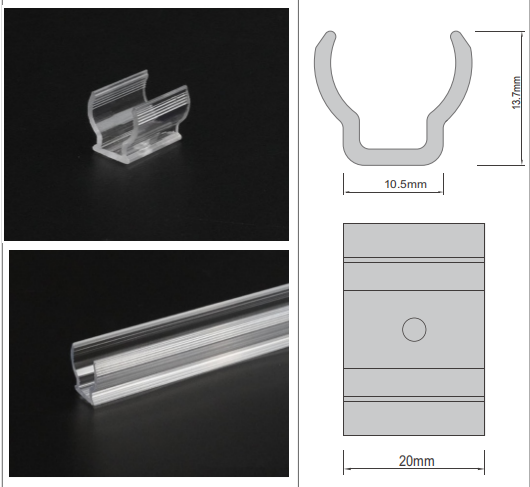

Accessory

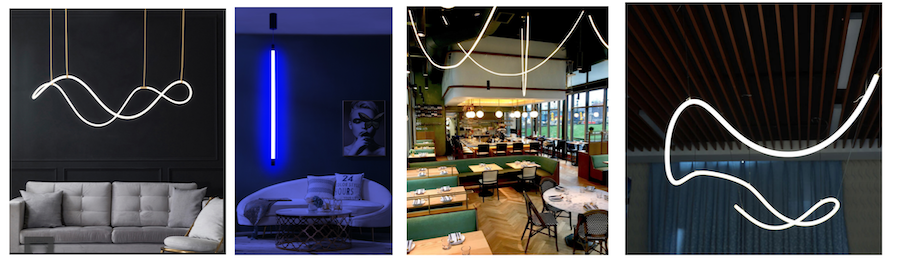

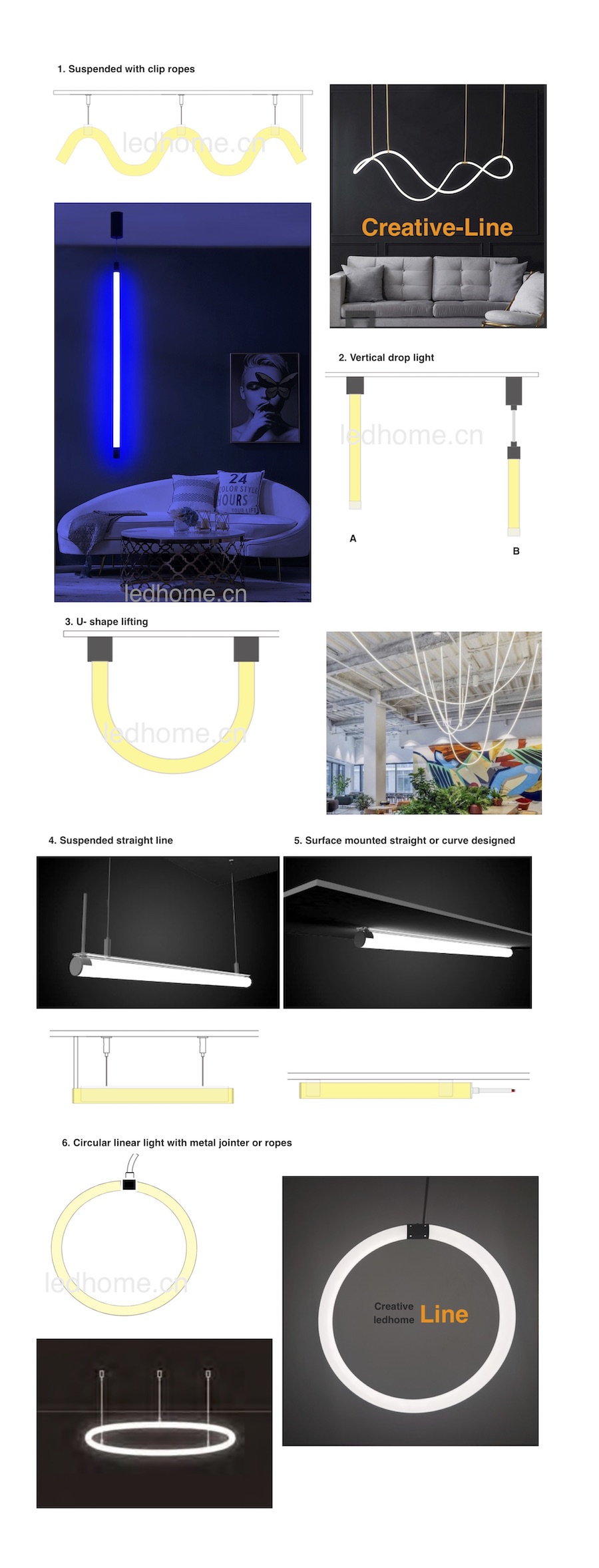

Application
.png)
Note：
1. Free sample and quick delivery within 3working days.
2. Pls contact us for detail data sheet / High quality pictures.
3. Customized is accepted.
