CCT COB LED Strip

768led/m 2-Row COB CCT Light Strip

Item Type: COB CCT Light Strip
P/N: FL-COB-CV24768-10CCT
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 180° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs

    Product Feature:

    Pin Code

    FL-COB-CV24768-10CCT

    LEDs/m

    608

    Power (W/M)

    15W (two side driver)

    Input voltage

    DC24V

    PCB Width

    10mm

    CRI

    Ra80/Ra90

    Lumen

    80lm/w or 110m/w

    Color

    2700k/3000k+6000k; 2700k/3000k+4000k; 4000k+6000k optional

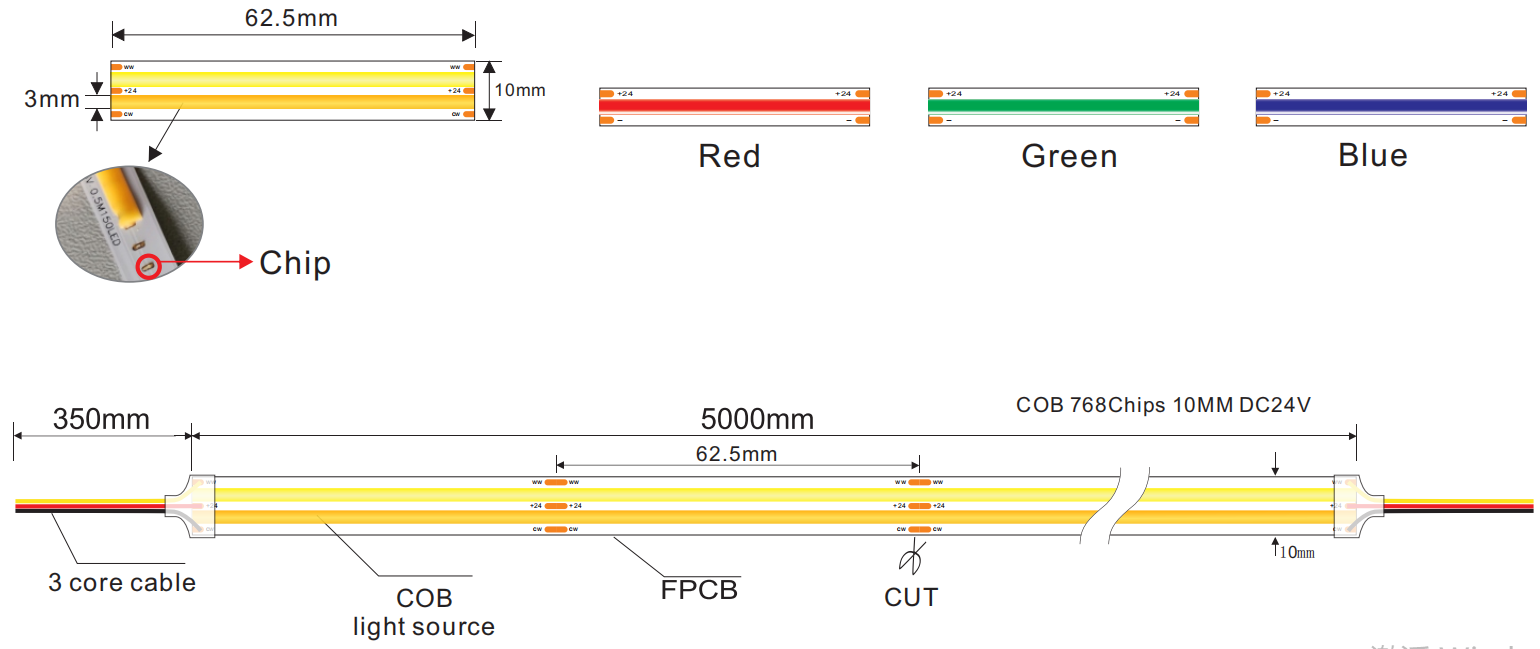

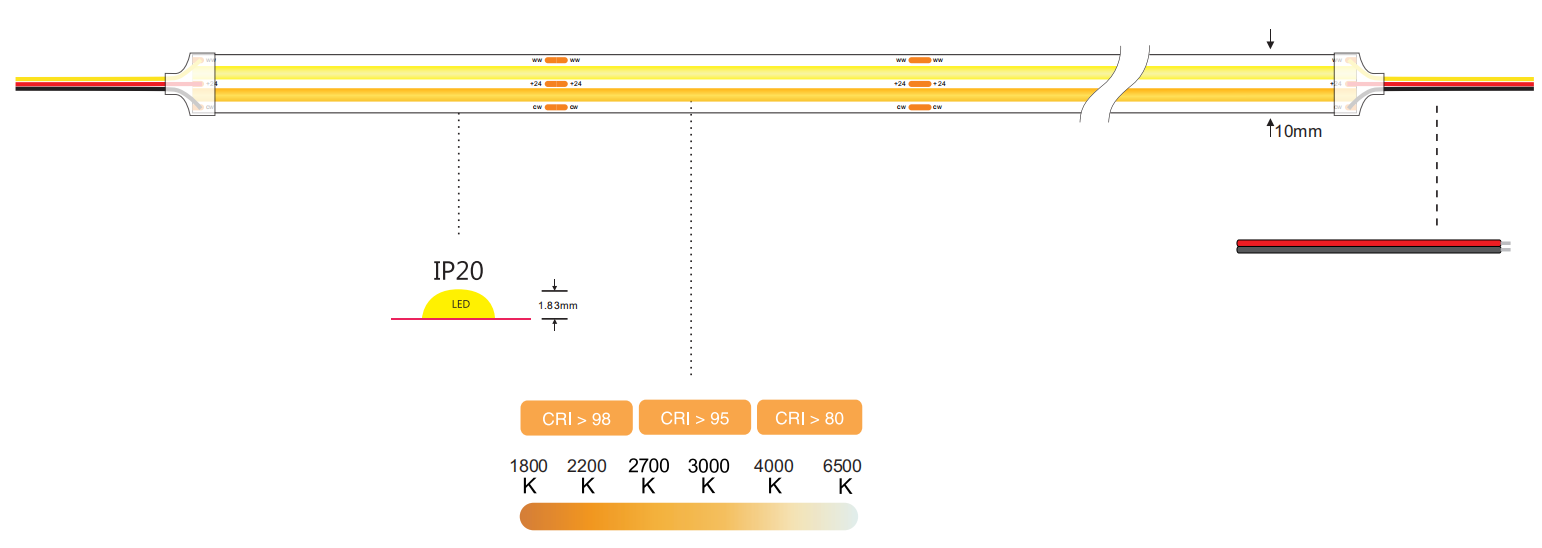

    Technical Drawing:

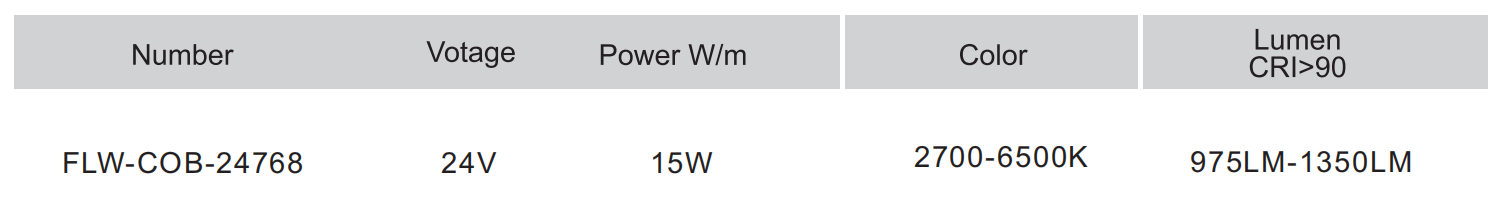

    Product Specification:

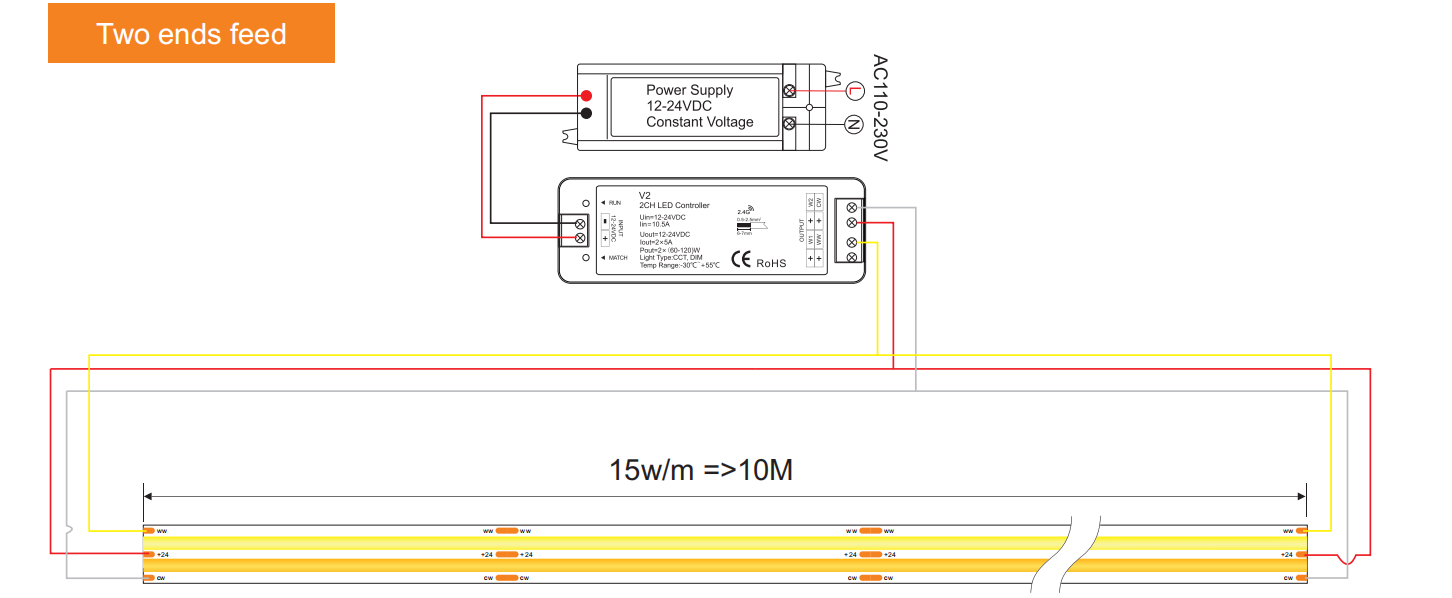

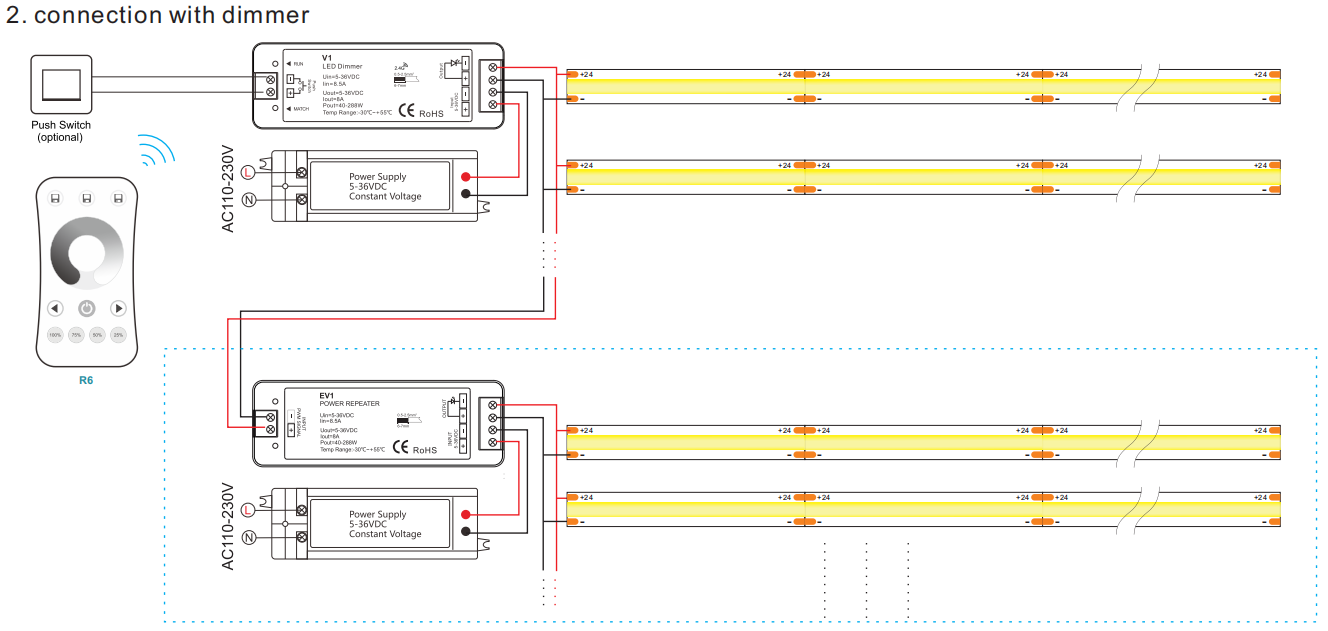

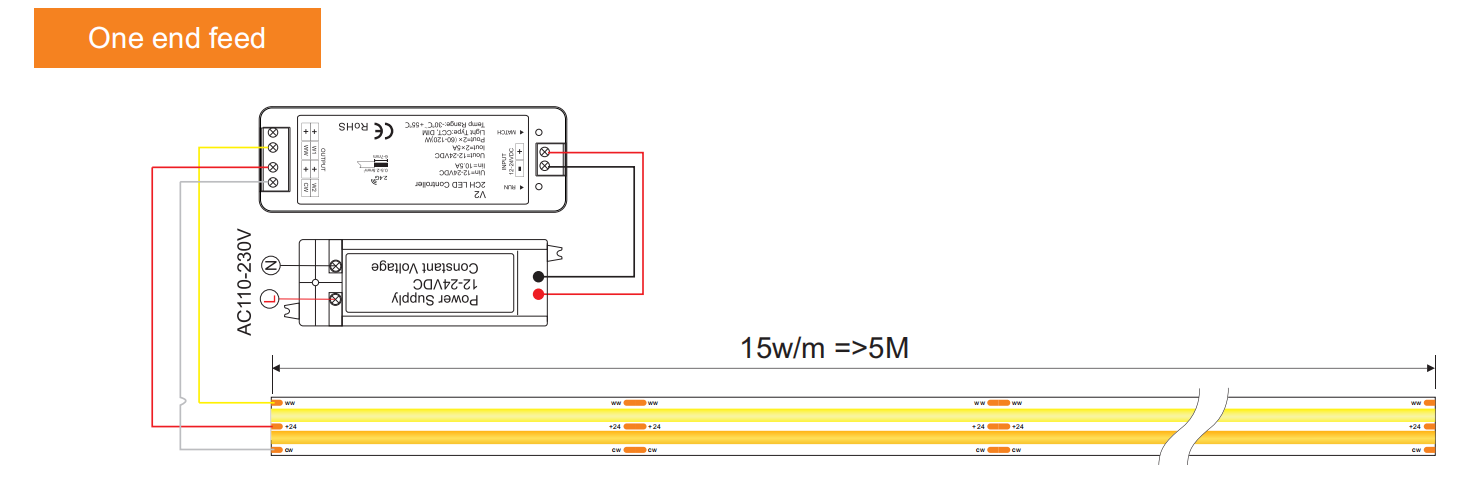

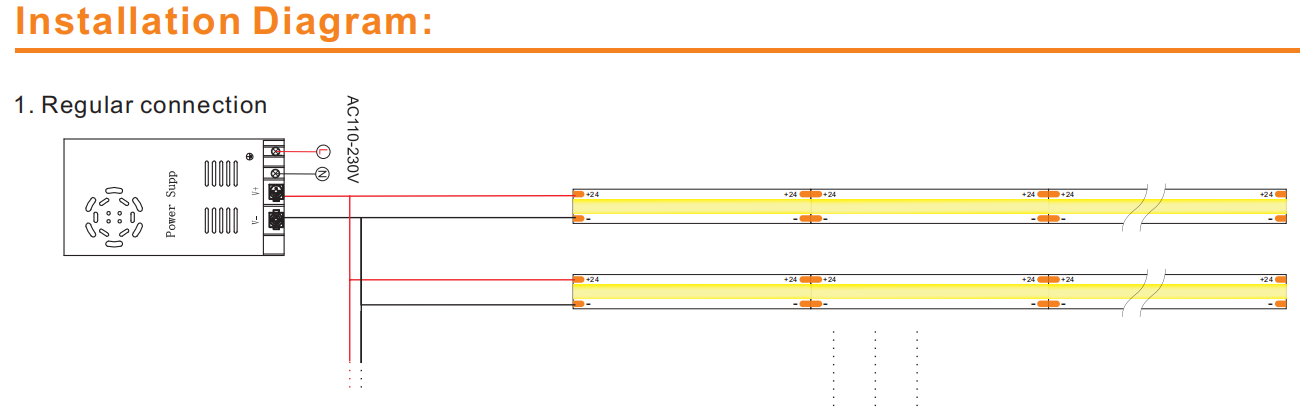

    LED Strip Solution:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
