CCT IC-built-in LED Strip

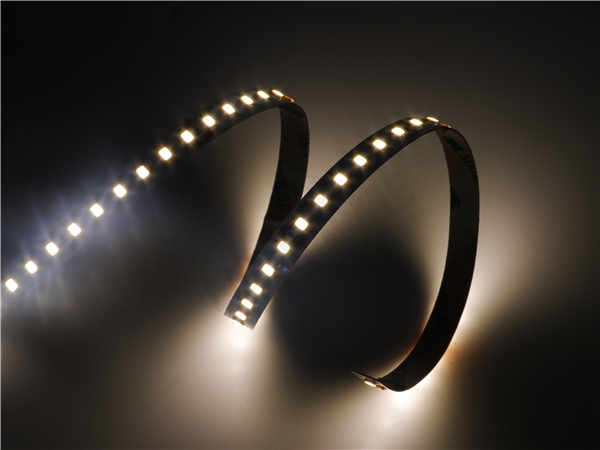

2835 120led/m CCT IC-Built-in Led strip

Item Type: Long length LED strip
P/N: FL2835IC-CC24120-10CCT
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FL2835IC-CC24120-10CCT

    LEDs/m

    120

    Power (W/M)

    9.6W/m -30meter; 14.4w/m -20meter
    ( two side driver )

    Input voltage

    CC24V

    PCB Width

    12mm

    Min. Unit (mm)

    12/100mm

    Lumen

    1400-1500lm

    Color

    Tunable white: 2700K/3000K/4000K/6000K, other special C.T. is accepted

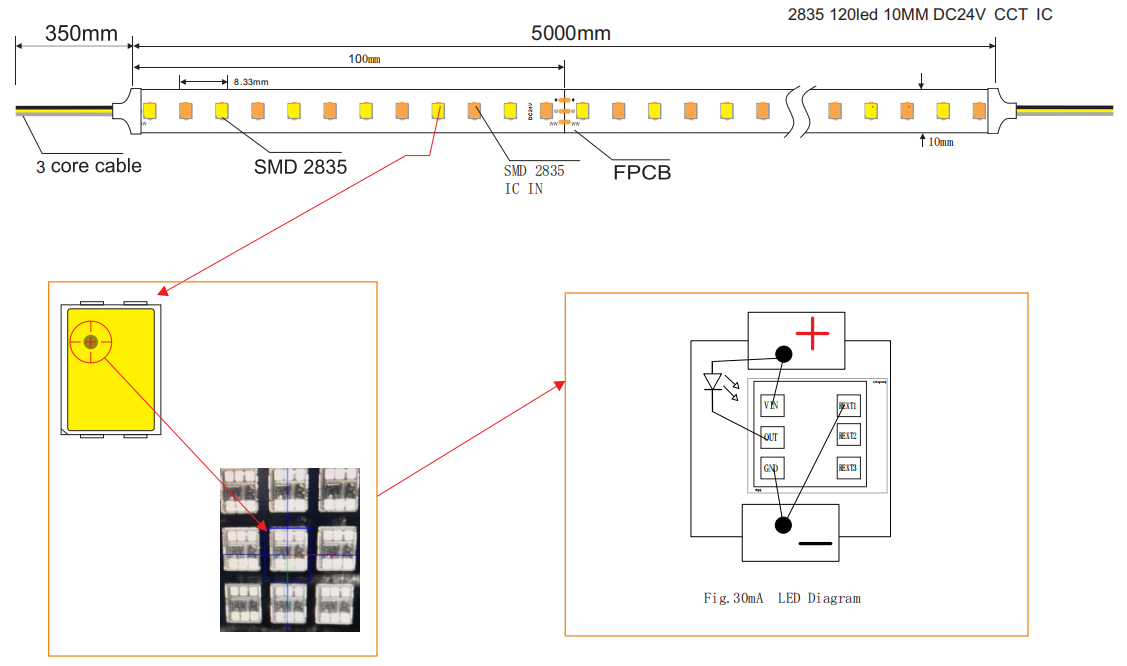

    Technical Drawing:

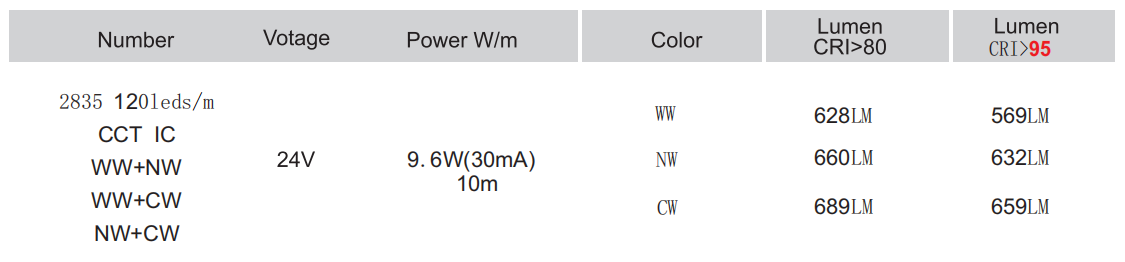

    Product Specification:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
    File Name : Format: Size: Download:
