Constant Current LED strip

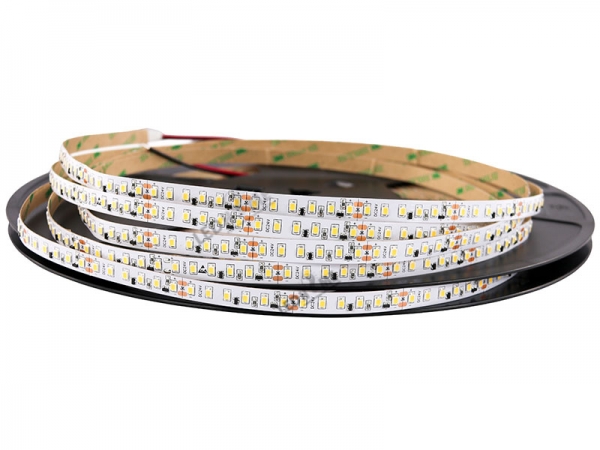

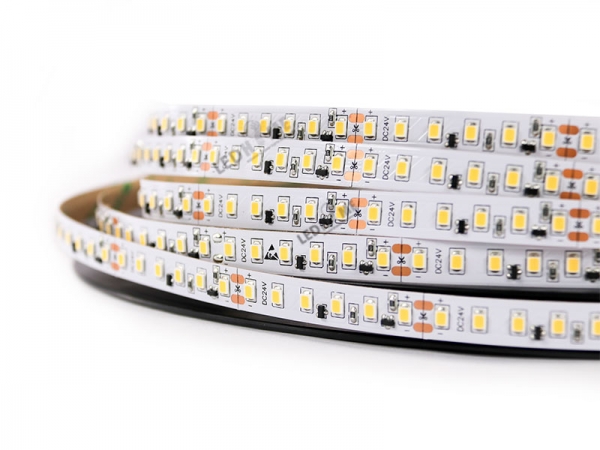

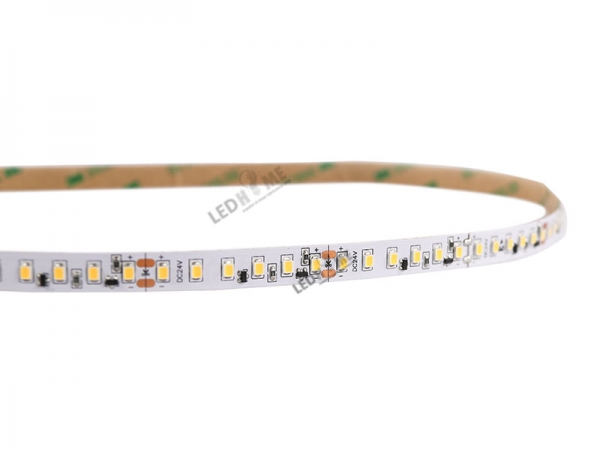

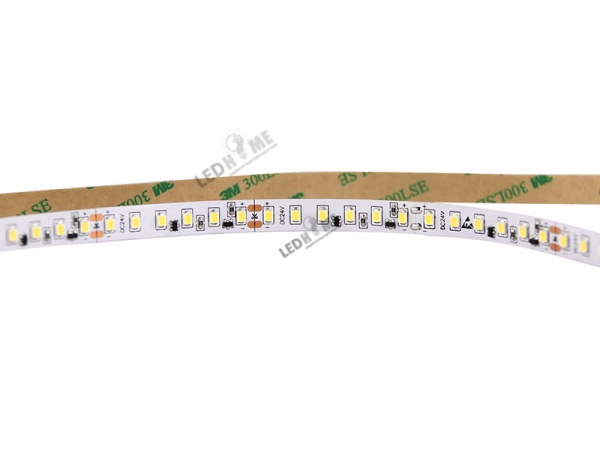

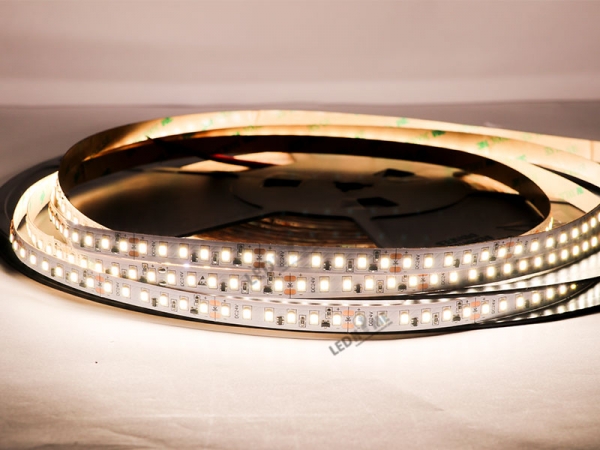

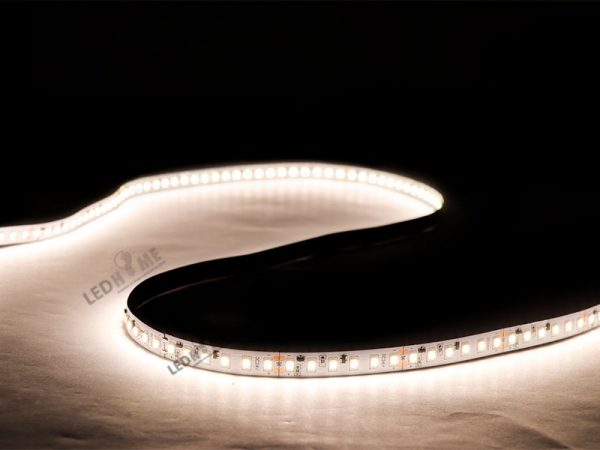

2835 120led/m flexible CC LED strip

Item Type:  Constant current LED strip
P/N: FL2835-CC24120-10W27
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs

    Product Feature:

    Pin Code

    FL2835-CC24120-10W27

    LEDs/m1

    120

    Power/m

    24W

    Input voltage

    CC24V

    PCB Width

    12mm

    Working temperature

    25°C 〜45°C

    Beam angle

    120°

    CRI

    Ra90/Ra80

    Lumen

    1680-1820lm

    Color

    2700k/3000K/4000K/5000K /6000K, other special C.T. is accepted

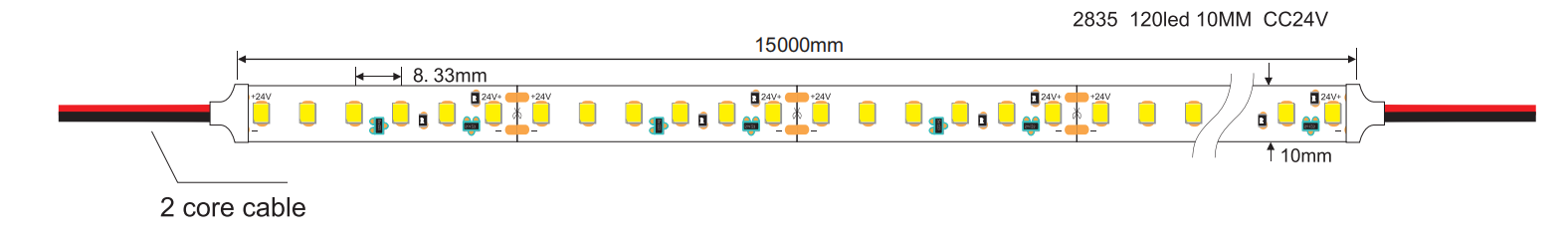

    Technical Drawing:

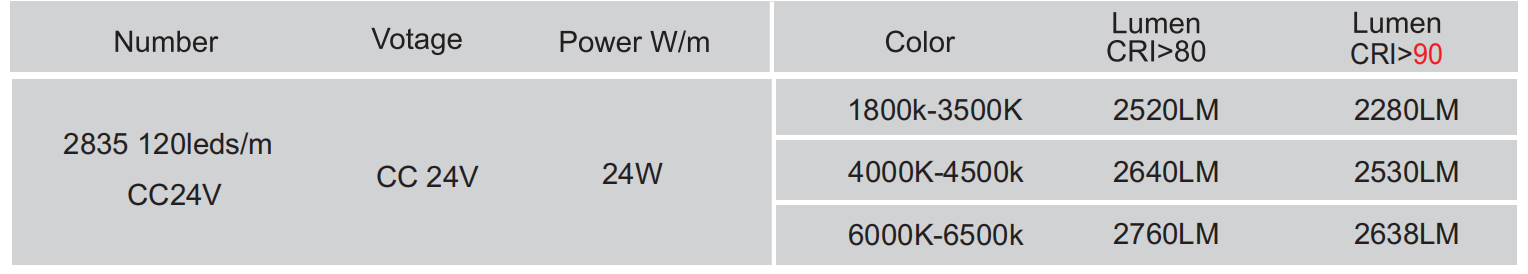

    Product Specification:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.












    File Name : Format: Size: Download:
