Your Questions on Constant Current IC Built in LED Strip
1. Can built-in IC strip light make full spectrum light strip?
Yes, we can make Ra≥95 if C.T. ≥3000K，special request need MOQ accordingly.
2. Is the same warranty as a common light strip?
We ledhome offer our new led strip 3 years warranty.
3. Can built-in IC light strip make CCT adjustable? how long does it take?
Yes.If we want to make dual white built-in IC strip, its no problem, we ledhome could make it. And we can design the PCB under your request; usually lead time takes 13-16 days.
4.The built-in IC strip is also a constant current led strip, what is the difference from the constant voltage strip?
The built-in IC light strip is a constant current strip under 16-40V inputs, which can completely replace the old constant current strip. It has enlarged more benefit to clients compared with normal constant current led strip and constant voltage strip.
5. Can built-in IC strip completely replace the traditional IC strips?
ledhome built-in IC strip is the upgraded version of external IC strip,we have designed the IC inside the LED to make sure each led works in same current. And built in IC Constant current led strip has neat appearance and has saved the adventure of external IC broken by other sharp or forceful damage.
6. Is built-in IC strip more stable than the external IC?
Sure, It is more stable as having already avoided the fake soldering problem and other external friction.
7.What is the advantage of the built-in IC strip compare to the external IC?
Decrease the adventure of damaging the resistors if outside onto the PCB.
Ensure each led working in same current for longer lifetime.
Same brightness on both ends even running long length (e.g. Length 30meter power in one side)
Cost saving for constant current led strip.
Wider choice for voltage from 12v-48v.
Flexible choice for your led driver from 12v-48v，any your 24v, 36v, 48v driver could work with our 12v ic built in led strip.
Built-in Constant Current IC can assure each LED working under same current even with fluctuant input voltage

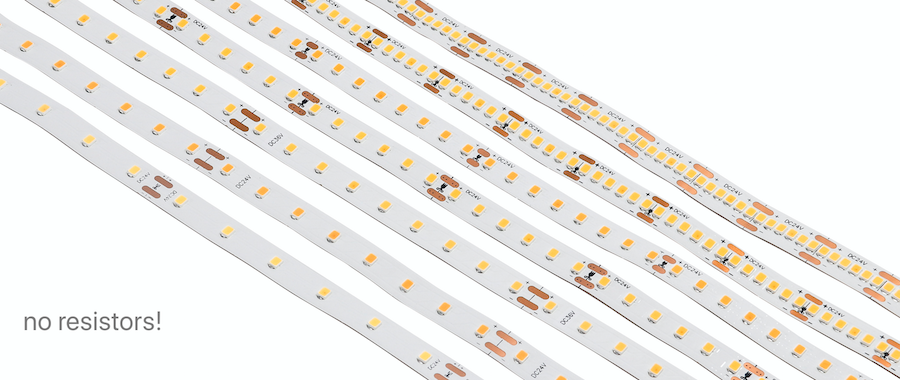

Max density 300led/meter, other choice: 60led, 80led,90led, 120led, 128led, 240led and 300led per meter.
10meter without voltage drop, 15meter without voltage drop, 20meter without voltage drop, 30meter without voltage drop.
High Eifficacy: 115lm/w – Ra >95.
Color temperature: 1800k-10000k available.
IP rating: non-waterproof, IP62, IP65, IP67, IP68
8. What is the difference between built-in IC and the external IC strip?
the difference are price and appearance, external IC has been seated onto PCB, while built in IC has safely protected inside the LED. And built in ic led strip for extrusion waterproof, it will definitely more stable.
9. Can color temperature of built-in IC strip reach12000K? or even we want less C.T. such as 1800k?
No problem, since we have over 10years experience on led package innovation and production.its no proble to ask any C.T. that you interest for your project. But as we can understand such high color temperature will make small difficult to control CRI.
10.since regular led strip is 110-130lm/w, can built-in IC strip reach 160lm/w? or higher than our efficacy led strip?
Currently CRI80 can reach 155lm/w for our built in IC LED strip, and our LEDHOME engineer is still improving to make breakthrough.
11. Does IC inside of LED will affect the life of LED?
NO, if we make it working correctly. For example, if our strip always works in high voltage over 40V, so it will make trouble on the quality and stability. this is reasonable.
12. Can the built-in IC do 50 meters or longer?
No problem, we led home has special engineer and we can design for you, but can we accept less power per meter?
13. The high efficacy built-in IC strip compared to the regular high efficiency strip, the lighting effect is so high. Does this mean that it is not really high-efficiency strip?The high efficacy built in IC led strip we already could reach 155lm/w, but why not higher?
as that special pcs LED seated with IC is not high efficacy LED, but regular LED. So the output lumen has been decreased a bit.
as that special pcs LED seated with IC is not high efficacy LED, but regular LED. So the output lumen has been decreased a bit.
14. Can the built-in IC strip do 12V?
No problem, but the cost will increase because the cost of IC number is increased.
15. Built-in IC strip 24V can do 30 meters long?
Yes, 30meter per pcs can be produced if we accept less power per meter.
16. Can it be made into RGB?
At present, No, because red color has only one electrode, and the current bracket could not hold it.
17. How long can be made per meter?
This depends on the power and PCB width design. Now we have 30 meters.
18.Can we make 5050 or 3528 Built-in IC led strip also?
Surely, no problem. But 5050SMD cost will be higher than 2835 and 3528. Do you think this is nice market to make 5050 IC built in led strip? But we will make 3528 Built-in IC strip in future.
19. if its broken, is it one led or one circuit has no light output?
One circuit under problem, one circuit will not work, others still keep working.
20. How is ledhome IC built in led strip’s stability?
At present, we have made low and high temperature age testing for over 2months now.( -40℃+ 60 ℃ temperature ) (humidity of 80%) , our ic built in led strip works still great.pls contact info@easinghome.com for test report.
21. Can I produce other types of built-in constant current strips in the future?
We have the direction in mind for our product extensions, such as constant current extrusion, constant current COB etc.
22. Can it be used for large projects?
It is born for it. No problem. Do it. We have 3years guaranty for you.
23.What are the advantages of IC Built-in Strip?
Super long length max 30meter/pcs without voltage drop,
Over temperature protection,
Neat appearance, etc.
24. What is the lumen?
Normally CRI 80 can reach 110-120LM/W,
High efficacy could reach 155lm/w
25. Why is the 300 light lit up very hot?
Because the LEDs are high density and we have put in full current working, we could make it less power, so this problem will not occur.
26. Can Built-in ic strip be dimmable? Does it working with our regular constant voltage dimmer?
It works with any dimmer. You have free choice.
27. What is the minimum width of the PCB that we can do? For example, can you make the PCB 3mm or 4mm?
Mini PCB 4MM is no problem, and we will make it less power because of the heat dissipation.
28. do we have BIN code for each color temperature?
Yes, we have BIN Code system, and all our production will under one BIN only.
29.If the IC itself inside LED has a problem, will that circuit LED still work?
Yes, this circuit will still work, but this circuit will be higher brightness than other circuit. As it has no IC to divide LED-working current, so they will work in full current from the power supplier. But do not worry; our other circuit leds will work well. And that broken circuit will not increase the current to other circuit.
30. As a client, why should we take this new IC built in led strip?
New product it means new market, we need some new product or competitive products to attract more clients and more business, surely its good to beat our competitors. Besides, its good to work with a reliable supplier who has over 10years experience on led strip production. The most important part is we can enjoy free sample and warranty declaration to keep our clients benefit.
Welcome to submit more and more your questions about our new IC Built in led strip, trust we could offer prfofessional answer and also professional product. you can drop mails at conatct@easinthome.com
those knowledge is the fruit of our ledhome team, hope any readers could respect our knowledge, but not copy. thanks.
those knowledge is the fruit of our ledhome team, hope any readers could respect our knowledge, but not copy. thanks.
