what is constant current IC Built in led strip

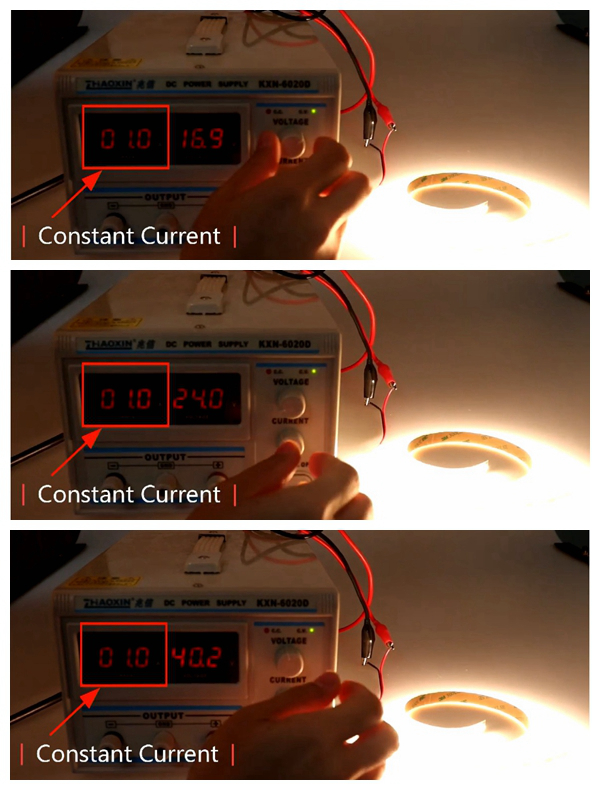

Checking the led strip, there is only led on the flexible FPC board. In each circuit of led, there is IC built inside the led, each IC will ensure each pcs led working in same current to achieve 100% same brightness for each led, same brightness from the begin to the end of led strip at max length 30meter if one end powered in with driver. below is our ledhome testing on the current and led strip working ability.even our voltage vibrate from 16v-40v, our strip still keeps in same current working and same brightness. that‘s the feacture of ledhome constant current ic built in led strip. you and your client could enjoy the advantage of this IC built in led strip, as your led strip will keep itself even your clients has adopted not good stable voltage led power supplier. and the choice of led power supplier seems is not a limitation just for 24v dc only.
.jpg)
Why choose ic built in led strip?
Why choose the strip without resistors?
1. Decrease the adventure of damaging the resistors if outside onto the PCB. much more stable working ability
2. Ensure each led working in same current for longer lifetime. With high precision current control, the built-in IC can stably output 10mA,15mA,20mA,25mA,30mA,35mA,40mA and 45mA. Different wattage requirements can be meet.
3. Same brightness on both ends even running long length (e.g. Length 30meter power in one side)
4. Cost saving for constant current led strip.
5. Wide choice for voltage: the LED strip can works well in wide input voltage: DC19V-DC40V, so you don‘t need to worry the bad power supply will shorten the life of the LED strip.
6. Flexible choice for your led driver from 12v-48v，any your 24v, 36v, 48v driver could work with our 12v ic built in led strip.
7. Built-in Constant Current IC can assure each LED working under same current even with fluctuant input voltage

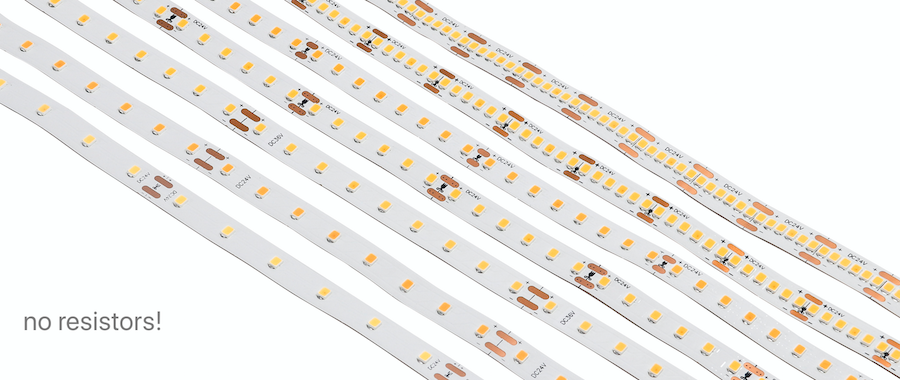

8. max density 300led/meter, other choice: 60led, 80led,90led, 120led, 128led, 240led and 300led per meter.
9. 10meter without voltage drop, 15meter without voltage drop, 20meter without voltage drop, 30meter without voltage drop.
10．High Efficacy: 115lm/w – Ra >95. 150lm/w –Ra >80
11. Color temperature: 1800k-10000k available.
12. IP rating: non-waterproof IP20, IP62, IP65, IP67, IP68.
| FLW-2835IC-24300-WW/WH (max 32.8ft/10meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warranty | |
| 300 | 24W/m | 24V | 12mm | 110-120lm/w | 80 | 6led/20mm | 1800-10000K | 5 years | |
| 300 | 24W/m | 24V | 12mm | 80-90lm/w | 90 | 6led/20mm | 1800-10000K | 5 years | |
| FLW-2835IC-24240-WW/WH (max 65.6ft/20meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warranty | |
| 240 | 19.2W/m | 24V | 10mm | 110-120lm/w | 80 | 6led/25mm | 1800-10000K | 5 years | |
| 240 | 19.2W/m | 24V | 10mm | 80-90lm/w | 90 | 6led/25mm | 1800-10000K | 5 years | |
| FLW-2835IC-24128-WW/WH (max 98.4ft/30meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warranty | |
| 128 | 11.52W/m | 24V | 10mm | 140-150lm/w | 80 | 8led/62mm | 1800-10000K | 5 years | |
| 128 | 11.52W/m | 24V | 10mm | 110-120lm/w | 90 | 8led/62mm | 1800-10000K | 5 years | |
| FLW-2835IC-240120-WW/WH (max 98.4ft/30meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warranty | |
| 120 | 14.4W/m | 24V | 10mm | 110-120lm/w | 80 | 6led/50mm | 1800-10000K | 5 years | |
| 120 | 14.4W/m | 24V | 10mm | 80-90lm/w | 90 | 6led/50mm | 1800-10000K | 5 years | |
| FLW-2835IC-36090-WW/WH (max 196.8ft/60meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warranty | |
| 90 | 10.8W/m | 36V | 10mm | 140-150lm/w | 80 | 9led/100mm | 1800-10000K | 5 years | |
| 90 | 10.8W/m | 36V | 10mm | 110-120lm/w | 90 | 9led/100mm | 1800-10000K | 5 years | |
| FLW-2835IC-24080-WW/WH (max 98.4ft/30meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warrany | |
| 80 | 7.2W/m | 24V | 10mm | 140-150lm/w | 80 | 8led/100mm | 1800-10000K | 5 years | |
| 80 | 7.2W/m | 24V | 10mm | 110-120lm/w | 90 | 8led/100mm | 1800-10000K | 5 years | |
| FLW-2835IC-24060-WW/WH (max 131.2ft/40meter/roll, power on both ends) | |||||||||
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Warranty | |
| 60 | 7.2W/m | 24V | 10mm | 110-120lm/w | 80 | 6led/100mm | 1800-10000K | 5 years | |
| 60 | 7.2W/m | 24V | 10mm | 80-90lm/w | 90 | 6led/100mm | 1800-10000K | 5 years | |
