what max length per pcs can be produced for built in ic LED strip
Time:2019-07-26
Views:7669
ledhome has developed this new generation led strip to solve the headache of our clients when they want the strip to run long length for one pcs. Such as 20meter per pcs, 30meter per pcs, 40meter per pcs, 60meter per pcs, 80meter per pcs ect. Long length running and no voltage drope, with less driver connection. trust ledhome could solve your problem on installation and project design. working with us, we could solve your strip length problem, strip voltage drop problem, strip color problem, strip waterproof IP Problem and we accept OEM. pls contact us freely.

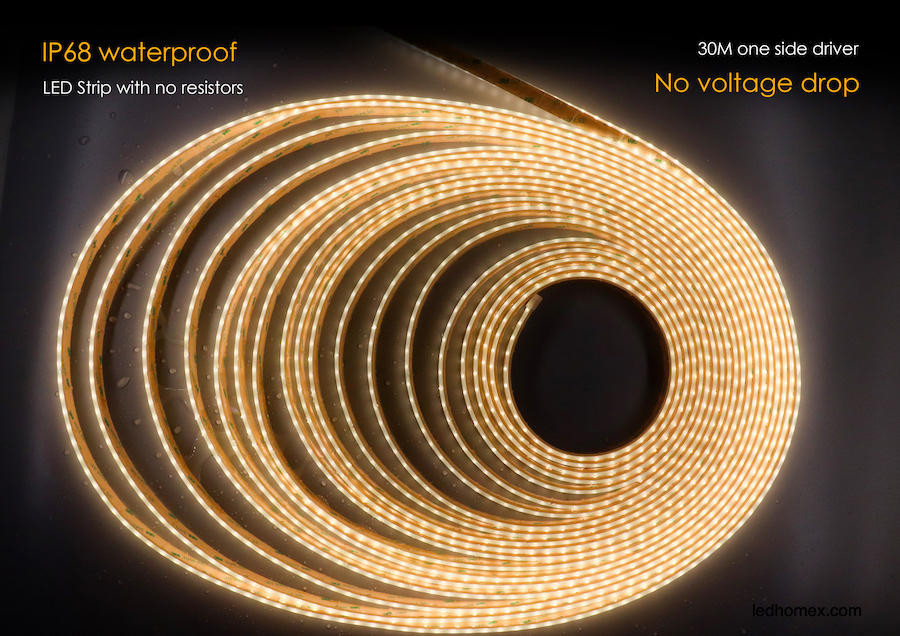

Super long length running without voltage /brightness drop. (max 80meter per pcs) | ||||||||
FLW-2835IC-24300-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
300 | 24W/m | 24V | 80 | 6led/20mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
300 | 24W/m | 24V | 90 | 6led/20mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
300 | 12W/m | 24V | 80 | 6led/20mm | 1800-10000K | 40m/pcs | 131.25ft/pcs | IP20/ IP62/ IP67/IP68 |
300 | 12W/m | 24V | 90 | 6led/20mm | 1800-10000K | 40m/pcs | 131.25ft/pcs | IP20/ IP62/ IP67/IP68 |
FLW-2835IC-24240-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
240 | 19.2W/m | 24V | 80 | 6led/25mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
240 | 19.2W/m | 24V | 90 | 6led/25mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
240 | 9.6W/m | 24V | 80 | 6led/25mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
240 | 9.6W/m | 24V | 90 | 6led/25mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
FLW-2835IC-24128-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
128 | 11.52W/m | 24V | 80 | 8led/62mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
128 | 11.52W/m | 24V | 90 | 8led/62mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
128 | 7.68W/m | 24V | 80 | 8led/62mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
128 | 7.68W/m | 24V | 90 | 8led/62mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
FLW-2835IC-240120-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
120 | 14.4W/m | 24V | 80 | 6led/50mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
120 | 14.4W/m | 24V | 90 | 6led/50mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
120 | 9.6W/m | 24V | 80 | 6led/50mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
120 | 9.6W/m | 24V | 90 | 6led/50mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
FLW-2835IC-24090-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
90 | 10.8W/m | 36V | 80 | 9led/100mm | 1800-10000K | 60m/pcs | 196.85ft/pcs | IP20/ IP62/ IP67/IP68 |
90 | 10.8W/m | 36V | 90 | 9led/100mm | 1800-10000K | 60m/pcs | 196.85ft/pcs | IP20/ IP62/ IP67/IP68 |
90 | 7.2W/m | 36V | 80 | 9led/100mm | 1800-10000K | 80m/pcs | 262.46ft/pcs | IP20/ IP62/ IP67/IP68 |
90 | 7.2W/m | 36V | 90 | 9led/100mm | 1800-10000K | 80m/pcs | 262.46ft/pcs | IP20/ IP62/ IP67/IP68 |
FLW-2835IC-24080-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
80 | 7.2W/m | 24V | 80 | 8led/100mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
80 | 7.2W/m | 24V | 90 | 8led/100mm | 1800-10000K | 20m/pcs | 65.6ft/pcs | IP20/ IP62/ IP67/IP68 |
80 | 4.8W/m | 24V | 80 | 8led/100mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
80 | 4.8W/m | 24V | 90 | 8led/100mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
FLW-2835IC-24060-WW/WH | ||||||||
LED/M | Power | Voltage | CRI | Cut length | CCT | Length m/pcs (two side driver) | Waterproof Grade | |
60 | 9.6W/m | 24V | 80 | 6led/100mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
60 | 9.6W/m | 24V | 90 | 6led/100mm | 1800-10000K | 30m/pcs | 98.42ft/pcs | IP20/ IP62/ IP67/IP68 |
60 | 7.2W/m | 24V | 80 | 6led/100mm | 1800-10000K | 40m/pcs | 131.25ft/pcs | IP20/ IP62/ IP67/IP68 |
60 | 7.2W/m | 24V | 90 | 6led/100mm | 1800-10000K | 40m/pcs | 131.25ft/pcs | IP20/ IP62/ IP67/IP68 |
60 | 4.8W/m | 24V | 80 | 6led/100mm | 1800-10000K | 60m/pcs | 196.85ft/pcs | IP20/ IP62/ IP67/IP68 |
60 | 4.8W/m | 24V | 90 | 6led/100mm | 1800-10000K | 60m/pcs | 196.85ft/pcs | IP20/ IP62/ IP67/IP68 |
