Mini Cutting LED Strip

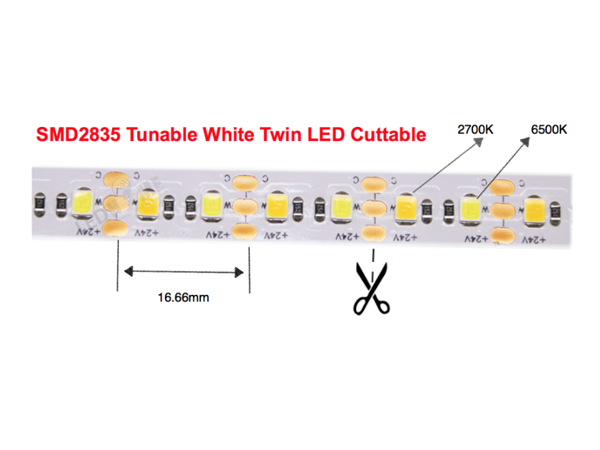

2835 120led/m CCT mini cut LED strip (Two LED per cut)

Item Type:  Mini cuttable LED strip
P/N: FL2835-CV5/12/24120-M210CCT
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FL2835-CV5/12/24120-M210CCT

    LEDs/m

    120

    Power/m

    DC4.5-6V 12W; DC12V 14W; DC24V  19W

    Input voltage

    5/12/24V

    PCB Width

    10mm

    Working temperature

    25°C 〜45°C

    Min. Unit (mm)

    2LED/16.66mm

    CRI

    Ra80/Ra90

    Lumen

    1380-1800lm

    Color

    Tunable white:
    2700K/3000K/4000K/6000K


    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
