Long Length LED Strip

15m 2835 120 CCT LED Strip with constant current IC

Item Type: Long length LED strip
P/N: FL2835-CC24120-12CCT
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FL2835-CC24120-12CCT

    LEDs/m

    120

    Power (W/M) - two side driver

    9.6w-30meter

    Input voltage

    CC24V

    PCB Width

    12mm

    Length

    15 meters

    Lumen

    520-572LM

    Color

    Tunable white: 2700K/3000K/4000K/6000K
    other special C.T. is accepted

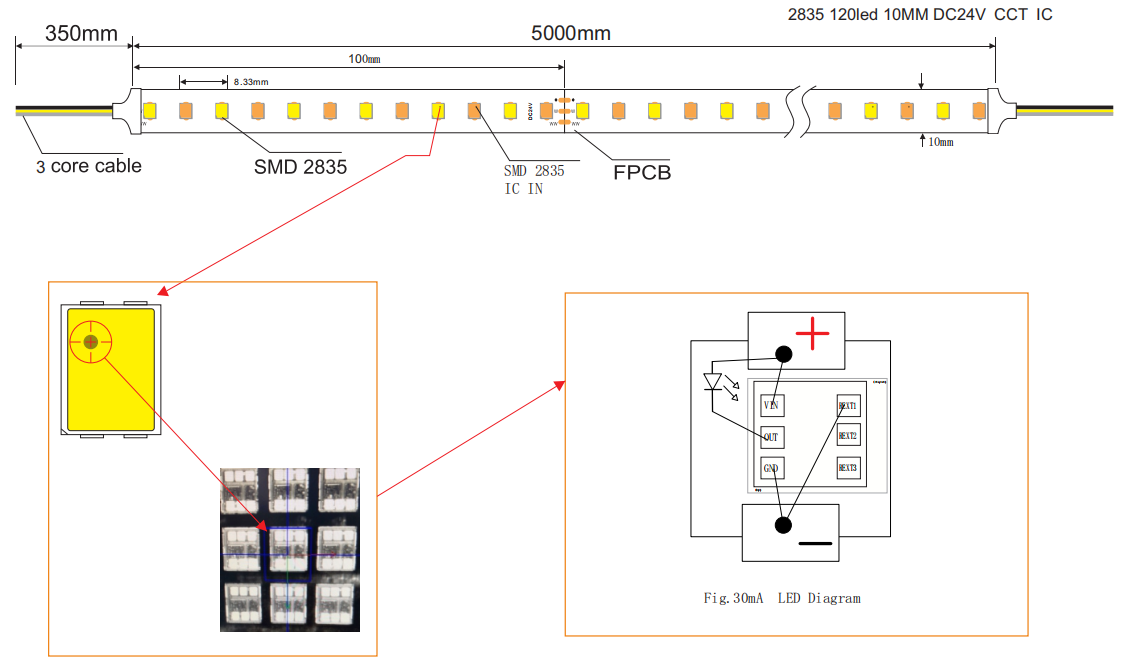

    Technical Drawing:

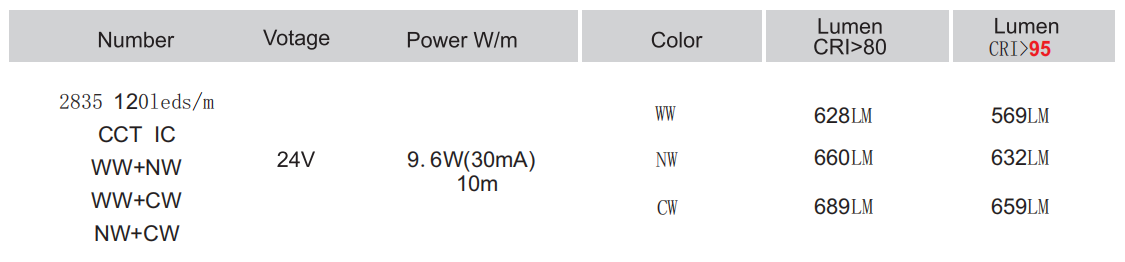

    Product Specification:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
