Product Feature:
P/N: FL2835IC-CC24060-10W27
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Packing: 300meter/Ctn. (68x26x28cm)

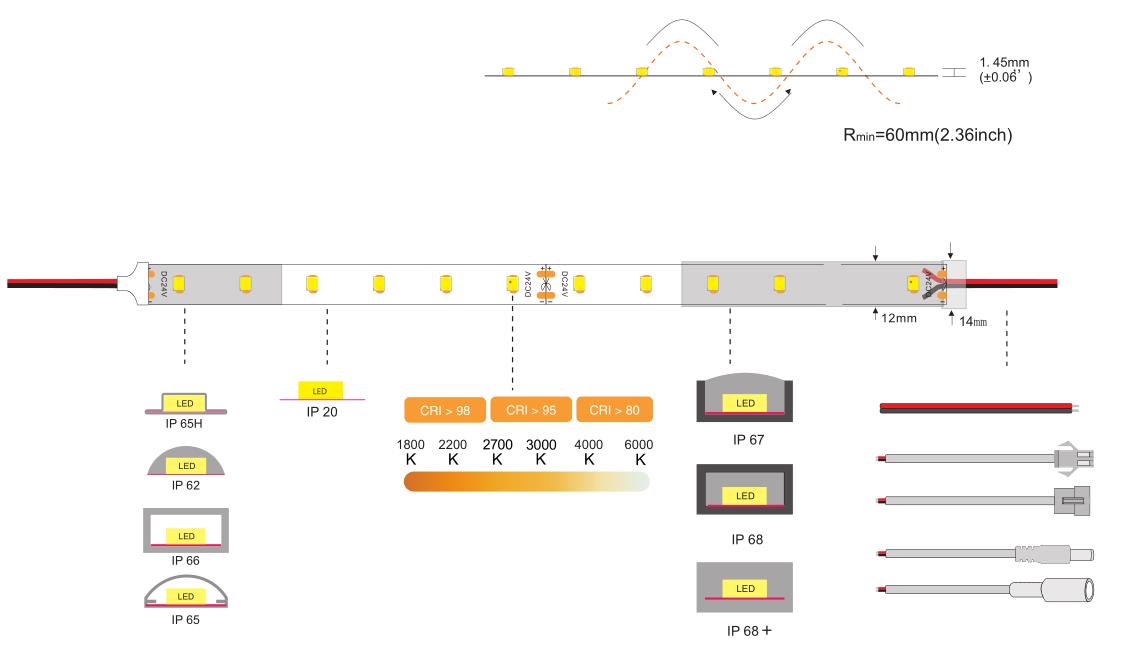

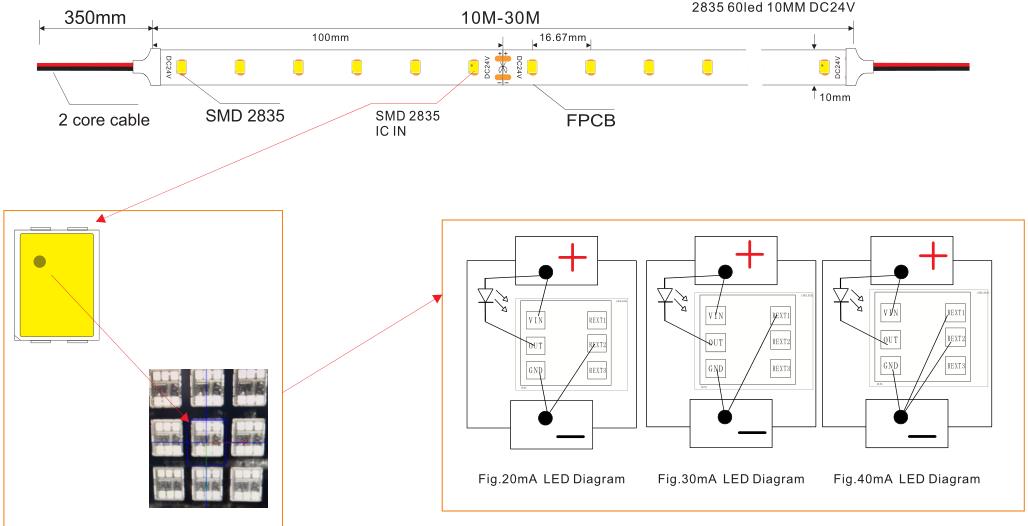

Technical Dimension:
Product Specification:
Technical Dimension:
Product Specification:
| LED/M | Power | Voltage | Width | Lumen | CRI | Cut length | CCT | Length (two side Feed) |
|
| 60 | 4.8W/m | CC24V | 10mm | 105-115lm/w | 80 | 6led/100mm | 2700K,3000K 4000K,5000K 6000K,6500K |
30m/pcs | 98.4ft/pcs |
| 60 | 4.8W/m | CC24V | 10mm | 83-95lm/w | 95 | 6led/100mm | 2700K,3000K 4000K,5000K 6000K,6500K |
30m/pcs | 98.4ft/pcs |
| Tips: other customized color or to build your customized Bin code system pls contact us further. |
| LED Strip Solution: |
Note:
1. free sample and quick delivery within 3working days
2. Pls contact us for detail data sheet / High Quality Picture
3. Customized led strip light is accepted.
4. IES Document / Test Report available.
5. Pls contact us for DWG/CAD drawing
