RGB LED Strip

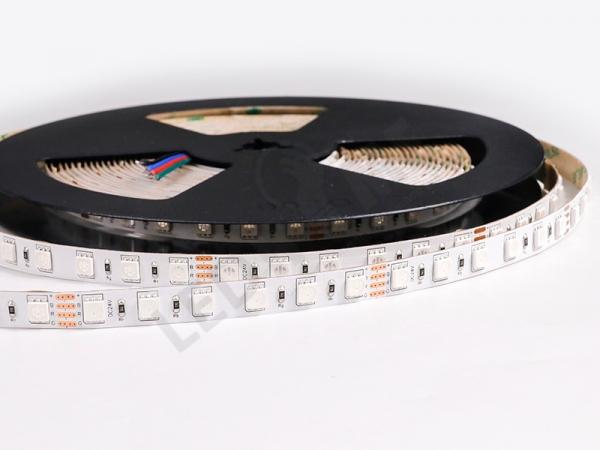

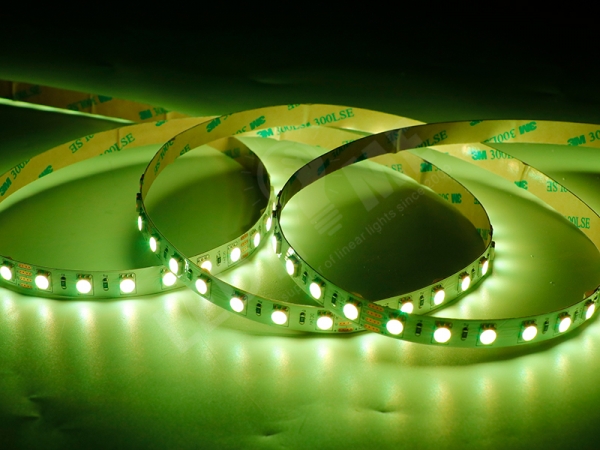

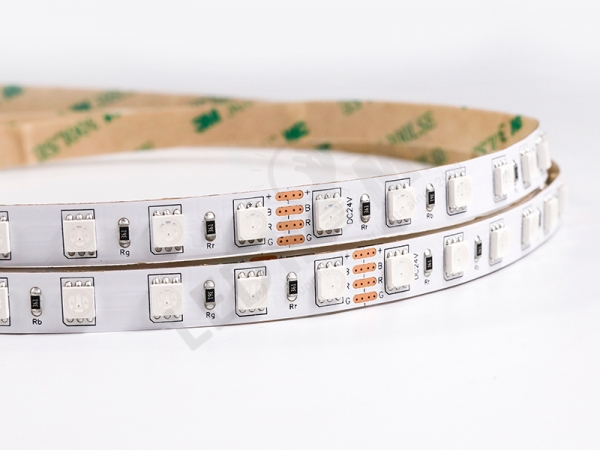

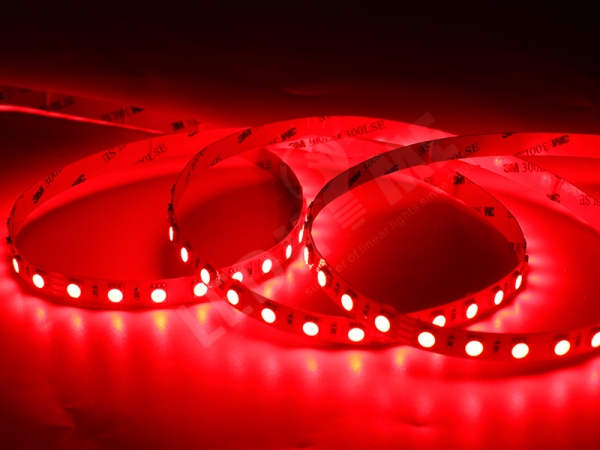

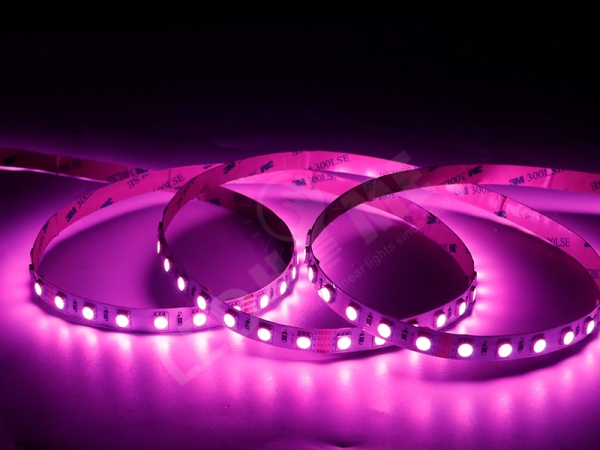

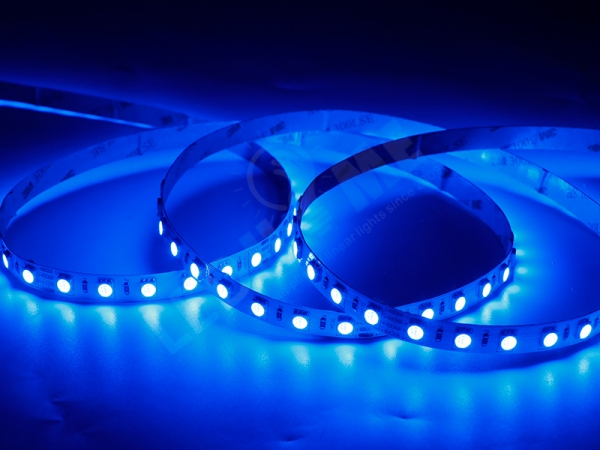

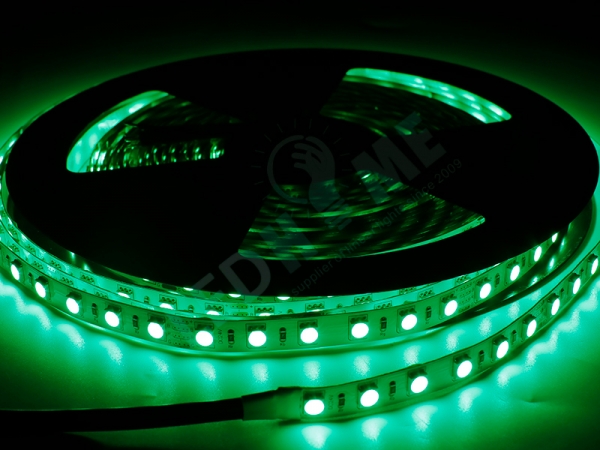

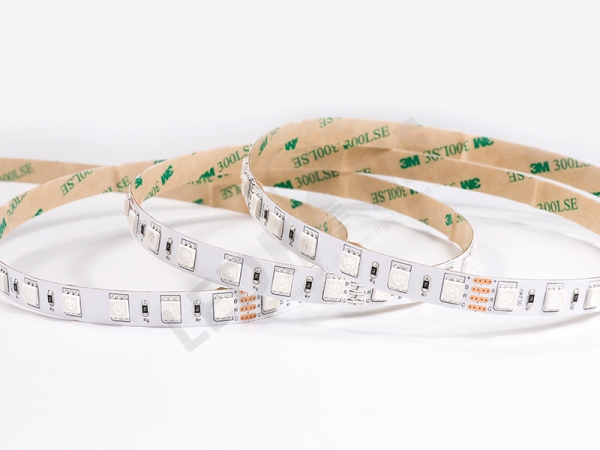

5050 72led/m RGB LED strip

Item Type: RGB LED strip
P/N: FL5050-CV12/24072-10W27
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III

    Product Feature:

    Pin Code

    FL5050-CV12/24072-10W27

    LEDs/m

    72

    Power/m

    17.2W

    Input voltage

    24V/ 12V

    PCB Width

    10mm

    Working temperature

    25°C 〜45°C

    Beam angle

    120°

    Color

    RGB

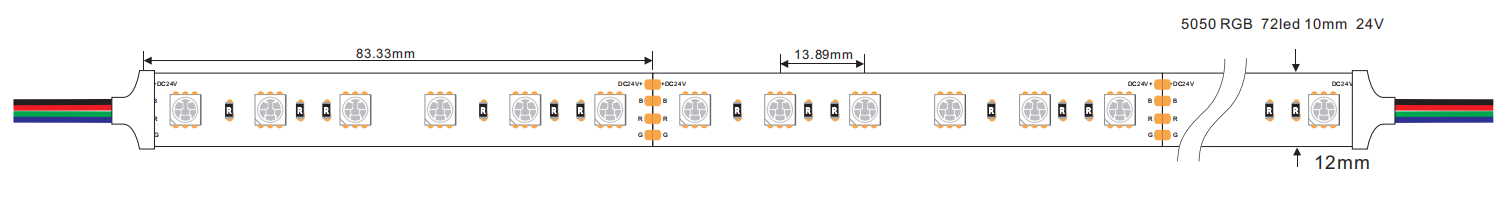

    Technical Drawing:

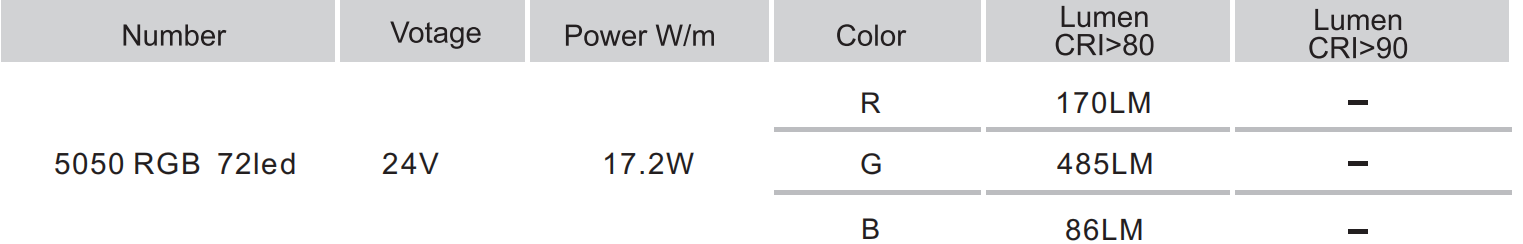

    Product Specification:



    LED Strip Solution:

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
    File Name : Format: Size: Download:
